TP100 - Overview

Release Brakes

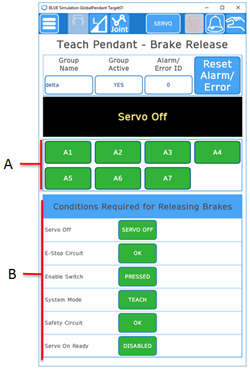

No. Description
A Use Buttons to release selected brakes
B

Brakes release buttons are only enabled when certain requirements are met

  • System is in servo off state
  • E-stop circuit is not activated
  • Enable switch is pressed
  • System is in Teach mode
  • Safety circuit is not activated
  • Servo On Ready status is disabled


Note: When the TP100 Teach Pendant is used, the robot system is configured by the Soft Pendant. Download Soft Pendant
