GA500 Drive Quick Setup Procedure and ON-SITE Videos

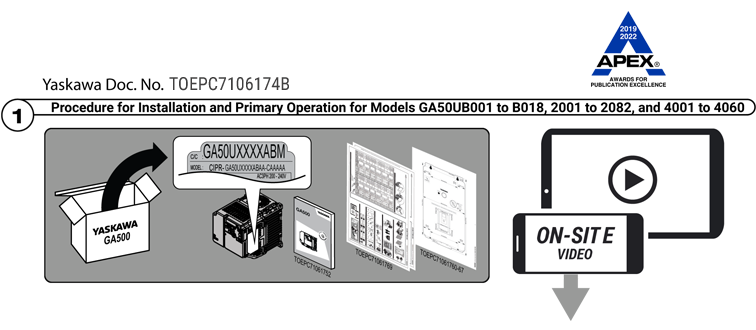

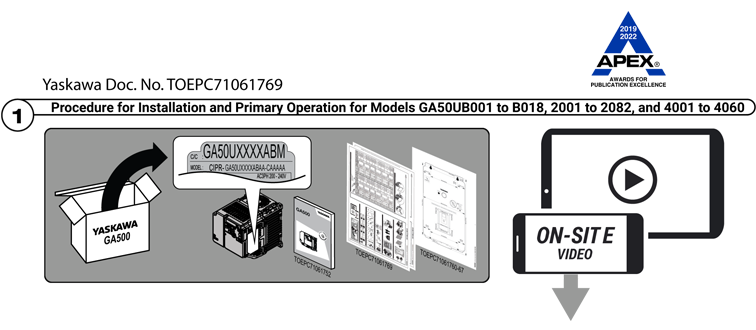

GA500 Drive Quick Setup Procedure

The step numbers in the table correspond to step numbers in Yaskawa document TOEPC71061769*.

*Drives Technical Communications was awarded a 2019 APEX Award in the How-To Writing category for their design work on new quick setup procedures for Yaskawa's latest generation of AC drives.

 Playlist Procedure Step and Video Title Description

GA500 Quick Setup Procedure Playlist
Playlist supports specific procedures contained within the GA500 Quick Setup Procedure (No. TOEPC71061769)

STEP 5: Panel Mount the GA500 Drive

How to mount the drive to a panel.

(No. VP.GA500.05)

STEPS 6-13: Wire the GA500 Drive

How to wire main power and a motor to the drive.

(No. VP.GA500.06)

STEPS 10-12: Auto-Tune the GA500 Drive

This video shows how to correctly Auto-Tune the drive to the motor.

(No. VP.GA500.07)

STEP 13: Run Motor at Desired Speed from the GA500 Keypad

How to run the motor from the keypad at a desired speed.

(No. VP.GA500.08)

GA500 How-To Playlist
Additional playlist for all GA500 How-to videos that show how to maintain, program, adjust, and use the many features of the GA500 AC Drive.
GA500: How to View Modified Parameters

How to view the Modified Parameters on the drive keypad.

(No. VP.GA500.02)

Check back for more!
