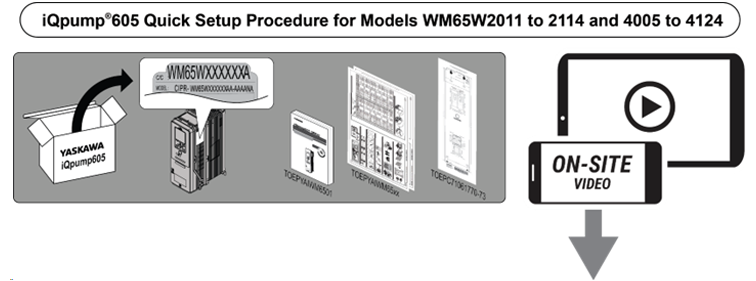

iQpump605 Drive Quick Setup Procedure and ON-SITE Videos for Small Frames

The videos support Yaskawa documents TOEPYAIWM6504 and TOEPYAIWM6510. These documents are packaged with iQpump605 drive models WM65W2011 to 2114 and 4005 to 4124.

Playlist	Video Title/Description
iQpump605 Drive Quick Setup Procedure Playlist (124 Output Amps and Smaller) How to install, wire, and set up the drive for test operation with a motor using the drive keypad and the instructions packaged with an iQpump605 drive.   This ON-SITE video playlist is a companion to Quick Setup Procedure documents TOEPYAIWM6504 and TOEPYAIWM6510 and applies to smaller-frame iQpump605 models WM65W2011 to 2114 and 4005 to 4124.	Mounting an iQpump605 Drive Shows how to mount iQpump605 drive models WM65W2011 to 2114 and 4005 to 4124 to a panel. (Video No. VP.iQpump605.02 )
	Wiring an iQpump605 Drive Shows how to wire main power and motor leads to iQpump605 drive models WM65W2011 to 2114 and 4005 to 4124. (Video No. VP.iQpump605.01)
iQpump605 How-To Playlist Additional ON-SITE video playlist that applies to all iQpump605 drives. These videos demonstrate how to maintain, program, adjust, and use some of the many features of the iQpump605.	Viewing Modified Parameters Shows how to view the Modified Parameters on the iQpump605 HOA keypad. (Video No. VP.iQpump605.04)
	Setting the Real-Time Clock and Disabling the Initial Setup Screen Shows how to set the date and time and disable the initial setup screen on the iQpump605 HOA keypad. (Video No. VP.iQpump605.05)
