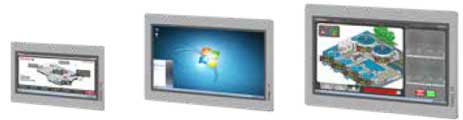

Panel PC
Panel PC
With the Panel PC series, you are best equipped for all control and monitoring tasks. The combination of industrial PC with the most modern performance features and a Touch Panel with ideal display possibilities concentrates high performance in the smallest space.
Specifications
For the most up-to-date information, visit https://www.yaskawa.eu.com.
 |
|
|
67K-RTPO-KJ
|
67P-RTPO-KJ
|
67S-RTPO-KJ
|
|---|---|---|---|
| Display Size (In) | 10.1 | 15.6 | 21.5 |
| Resolution (Pixel) | 1280x800 | 1366x768 | 1920x1080 |
| Touch Screen | Capacitive | ||
| Processor | Intel Celeron J1900 4 x 2.0 GHz | ||
| Interfaces | 2x Ethernet 2x RS232/422/485 (SUB-D) 2x USB 2.0 1x USB 3.0 1x VGA 1x Audio Out |
||
| Work Memory (GB) | 8 | ||
| User Memory (GB) | 64 | ||
| Card Slot | CFast | ||
| Housing | Aluminum | ||
| Protection | Front: IP65 | Rear: IP20 | ||
| Operating System | Windows 10 IoT | ||
| Runtime | HMI Designer | ||
| Order no. | Name/Description | |
|---|---|---|
| 67K-RTPO-KJ | Panel PC PPC010 CE
Display: 10.1”
Processor: Intel Celeron J1900 quad core @2 GHz Work memory: 8 GB Operating system and user memory: 64 GB Memory card plug-in place: CFast Interfaces: 2x Ethernet (10/100/1000), 2x USB 2.0, 1x USB 3.0, 2x serial (RS232,RS422/RS485), Audio out Incl. operating system Windows 10 IoT and Runtime HMI Designer |
|
| 67P-RTPO-KJ | Panel PC PPC015 CE
Display: 15.6”
Processor: Intel Celeron J1900 quad core @2 GHz Work memory: 8 GB Operating system and user memory: 64 GB Memory card plug-in place: CFast Interfaces: 2x Ethernet (10/100/1000), 2x USB 2.0, 1x USB 3.0, 2x serial (RS232,RS422/RS485), Audio out Incl. operating system Windows 10 IoT and Runtime HMI Designer |
|
| 67S-RTPO-KJ | Panel PC PPC021 CE
Display: 21.5”
Processor: Intel Celeron J1900 quad core @2 GHz Work memory: 8 GB Operating system and user memory: 64 GB Memory card plug-in place: CFast Interfaces: 2x Ethernet (10/100/1000), 2x USB 2.0, 1x USB 3.0, 2x serial (RS232,RS422/RS485), Audio out Incl. operating system Windows 10 IoT and Runtime HMI Designer |
|
 |
|
|
67K-RRJ0-EB
|
67P-RRJ0-EB
|
67S-RRJ0-EB
|
|---|---|---|---|
| Display Size (Zoll) | 10.1 | 15.6 | 21.5 |
| Resolution (Pixel) | 1280x800 | 1366x768 | 1920x1080 |
| Touch Screen | Capacitive | ||
| Processor | Intel Celeron J1900 4 x 2.0 GHz | ||
| Interfaces | 2x Ethernet 2x RS232/422/485 (SUB-D) 2x USB 2.0 1x USB 3.0 1x VGA 1x Audio Out |
||
| Work Memory (MB) | 2,048-4,096 | ||
| User Memory (MB) | 2,048-16,384 | ||
| Card Slot | CFast | ||
| Casing | Aluminum | ||
| Protection | front: IP65 | rear: IP20 | ||
| Operating System | Windows Embedded Compact 7 | ||
| Runtime | - Movicon 11 | ||
| Order no. | Name/Description | |
|---|---|---|
| 67K-RRJ0-EB | Panel PC PPC010 CE
Display: 10.1”
Processor: Intel Celeron J1900 quad core @2 GHz Work memory: 2 GB Operating system and user memory: 2 GB Memory card plug-in place: CFast Interfaces: 2x Ethernet (10/100/1000), 2x USB 2.0, 1x USB 3.0, 2x serial (RS232,RS422/RS485), Audio out Incl. operating system Windows Embedded Compact 7 and Runtime Movicon CE Standard Visualization system Movicon 11.5 Runtime |
Datasheet
Manual |
| 67P-RRJ0-EB | Panel PC PPC015 CE
Display: 15.6”
Processor: Intel Celeron J1900 quad core @2 GHz Work memory: 2 GB Operating system and user memory: 2 GB Memory card plug-in place: CFast Interfaces: 2x Ethernet (10/100/1000), 2x USB 2.0, 1x USB 3.0, 2x serial (RS232,RS422/RS485), Audio out Incl. operating system Windows Embedded Compact 7 and Runtime Movicon CE Standard Visualization system Movicon 11.5 Runtime |
Datasheet
Manual |
| 67S-RRJ0-EB | Panel PC PPC021 CE
Display: 21.5”
Processor: Intel Celeron J1900 quad core @2 GHz Work memory: 2 GB Operating system and user memory: 2 GB Memory card plug-in place: CFast Interfaces: 2x Ethernet (10/100/1000), 2x USB 2.0, 1x USB 3.0, 2x serial (RS232,RS422/RS485), Audio out Incl. operating system Windows Embedded Standard 7 and Runtime Movicon CE Standard Visualization system Movicon 11.5 Runtime |
Datasheet
Manual |
