MP3300iec-RBT

Robot System Diagrams

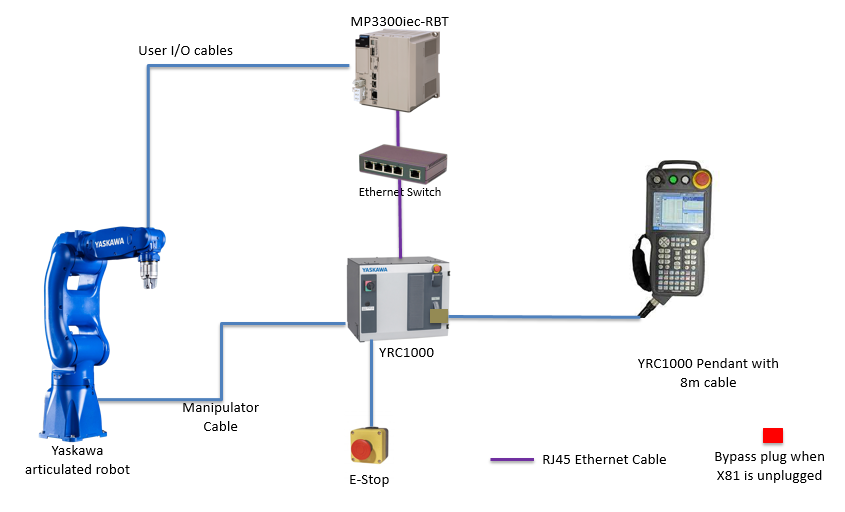

MP3300iec-RBT/YRC1000 System Diagram (Single Articulated Robot)
MP3300iec-RBT/YRC1000 System Diagram Single Articulated Robot

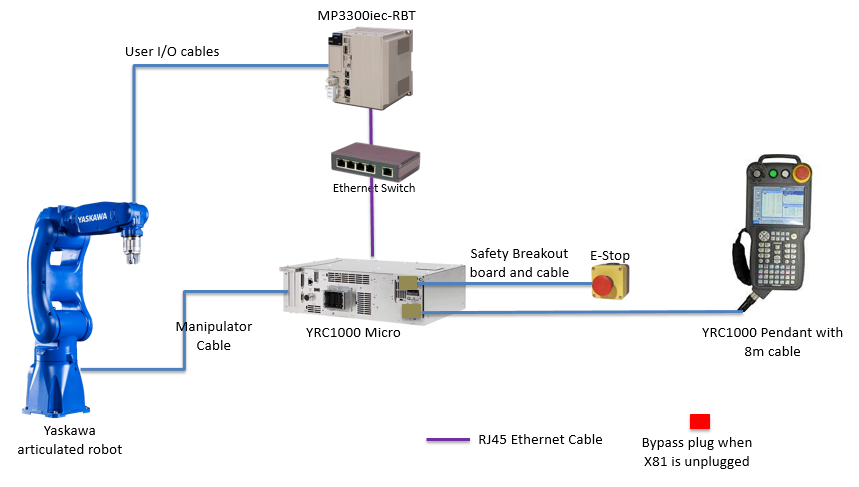

MP3300iec-RBT/YRC1000 Micro System Diagram (Single Articulated Robot)

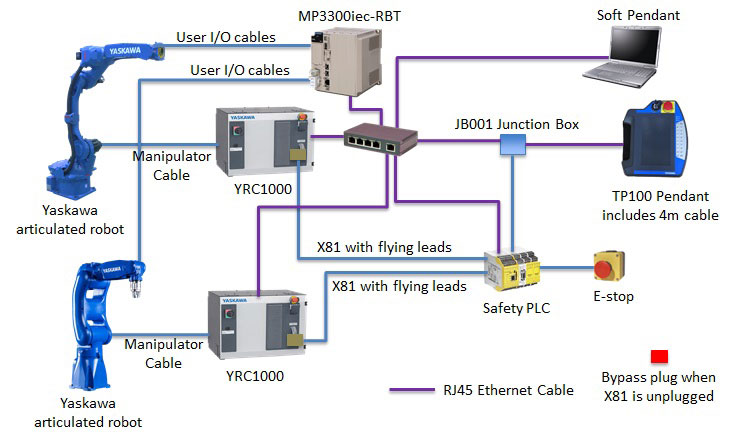

MP3300iec-RBT/YRC1000 System Diagram (Multiple Articulated Robots)
MP3300iec-RBT/YRC1000 System Diagram Multiple Articulated Robots

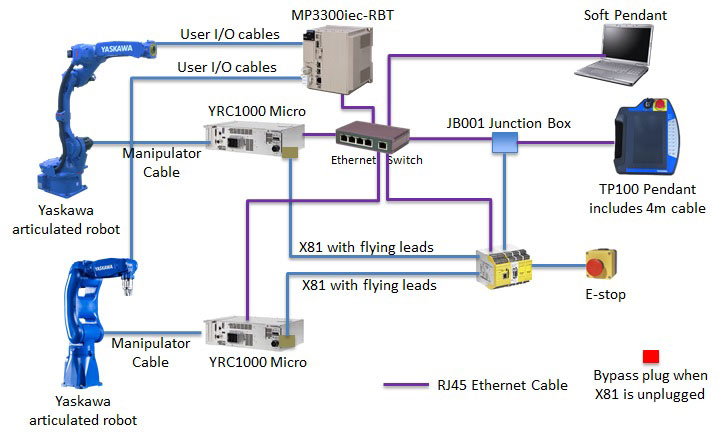

MP3300iec-RBT/YRC1000 Micro System Diagram (Multiple Articulated Robots)
MP3300iec-RBT/YRC1000 Micro System Diagram Multiple Articulated Robots

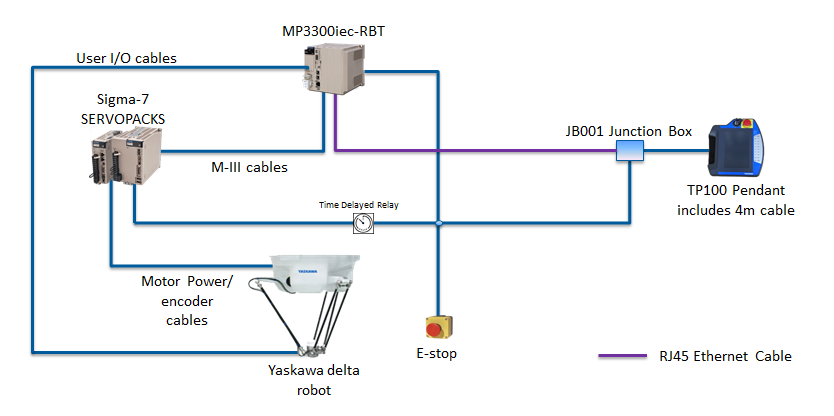

MP3300iec-RBT System Diagram (Delta Robot - With Amplifier Box)

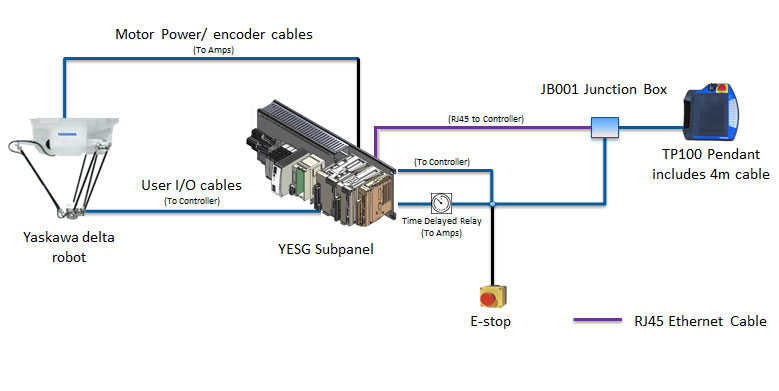

MP3300iec-RBT System Diagram (Delta Robot - Without Amplifier Box)

*For detailed robot system component part numbers and pricing, please contact your location Yaskawa sales manager for assistance.
