125 - 500 HP HVAC-Specific AC Drive with 2 or 3 Contactor Bypass

The Z1000 Bypass Package is optimized with an Intelligent Bypass and advance BAS interface. The design sets a new benchmark for performance, benefits and quality. The Z1000 Bypass is BTL listed, view listing.

The Intelligent Bypass, when enabled, can transfer the motor across the line when the application requires 60Hz. Most HVAC systems require 60Hz at peak demand (Summer months – daytime), which will utilize the intelligent bypass function. Removing the drive at 60 Hz saves energy and removes harmonics at worse case conditions.

TemplateWeb

Model Number Key

Z1000 Bypass - Overview

Z1000 Bypass Model Keys:

NEMA 1 | NEMA 12 | NEMA 3R
12-Pulse NEMA 1 | 12-Pulse NEMA 3R
18-Pulse NEMA 1 | 18-Pulse NEMA 3R

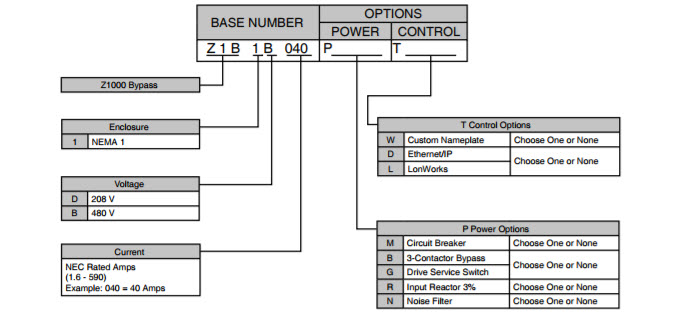

NEMA 1 MODEL KEY:

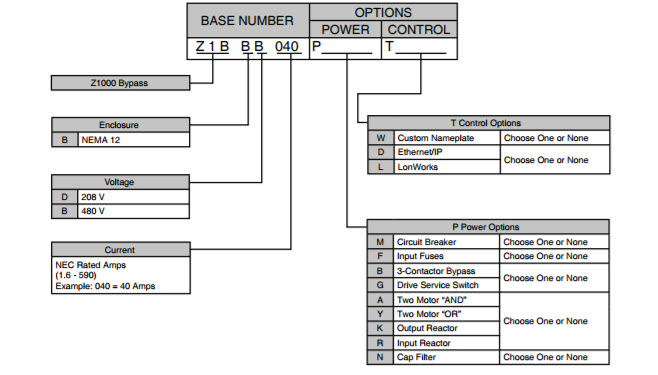

NEMA 12 MODEL KEY:

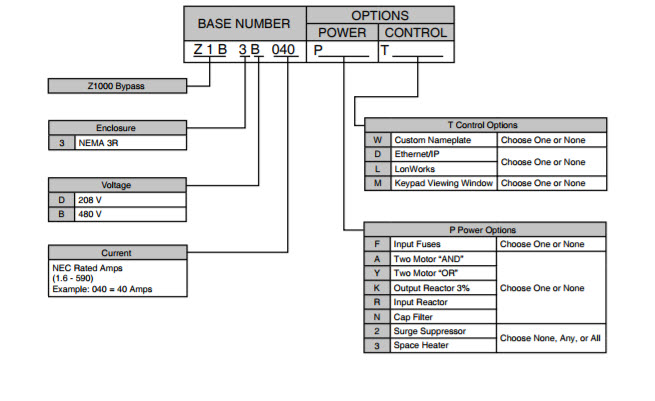

NEMA 3R MODEL KEY:

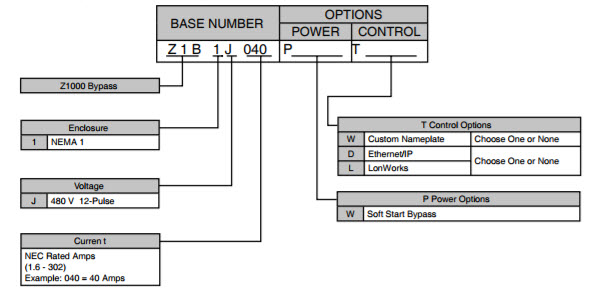

12 Pulse NEMA 1 MODEL KEY:

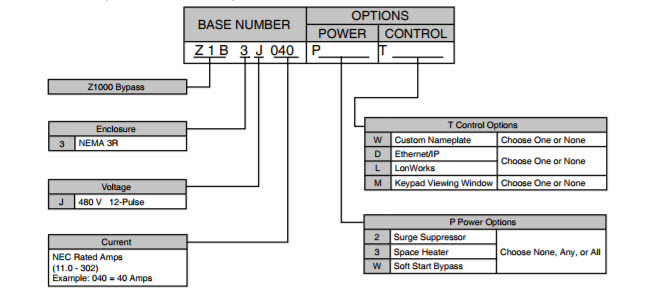

12 Pulse NEMA Type 3R MODEL KEY:

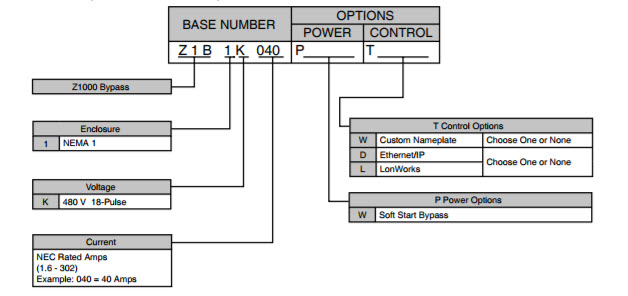

18 Pulse NEMA Type 1 MODEL KEY:

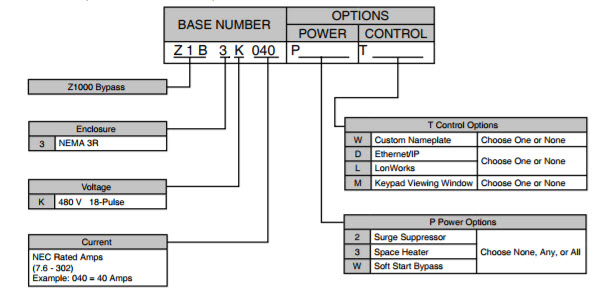

18 Pulse NEMA Type 3R MODEL KEY:
