iQpump1000 Configured
Configured Product for iQpump1000 Drive
The iQpump1000 Configured package provides an iQpump1000 in a UL Type 1, UL Type 12, or UL Type 3R enclosure, with space for several commonly used options, such as reactors, RFI filters, circuit breakers, etc. The iQpump1000 Configured Package has been designed for flexibility in providing the features and options commonly requested.
This Configured package is designed for tough industrial environments. It is rugged and reliable. A variety of enclosure options provide the right environmental protection.
Family Brochure
Core ManualsModel Number Key

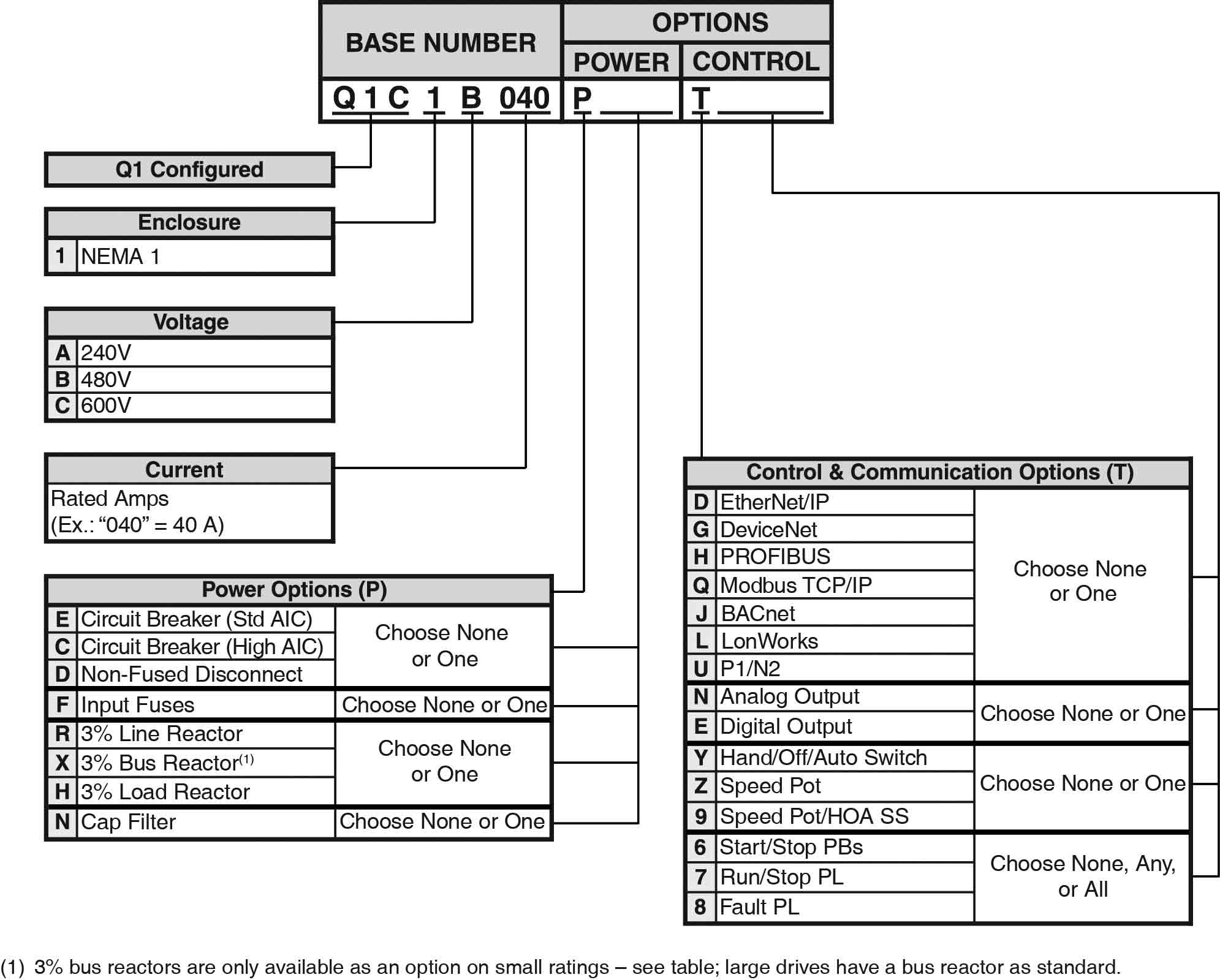

Model Key for 1-1000 HP, NEMA 1 Models:

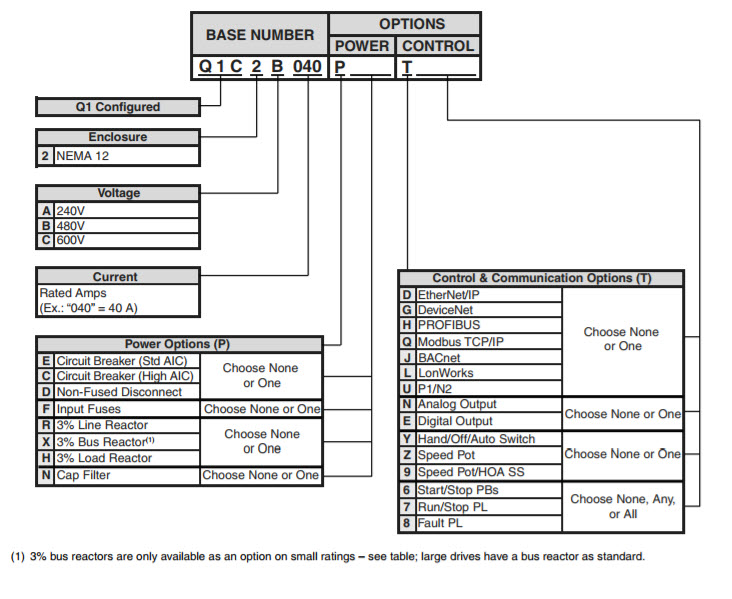

Model Key for 1-1000 HP, NEMA 12 Models:

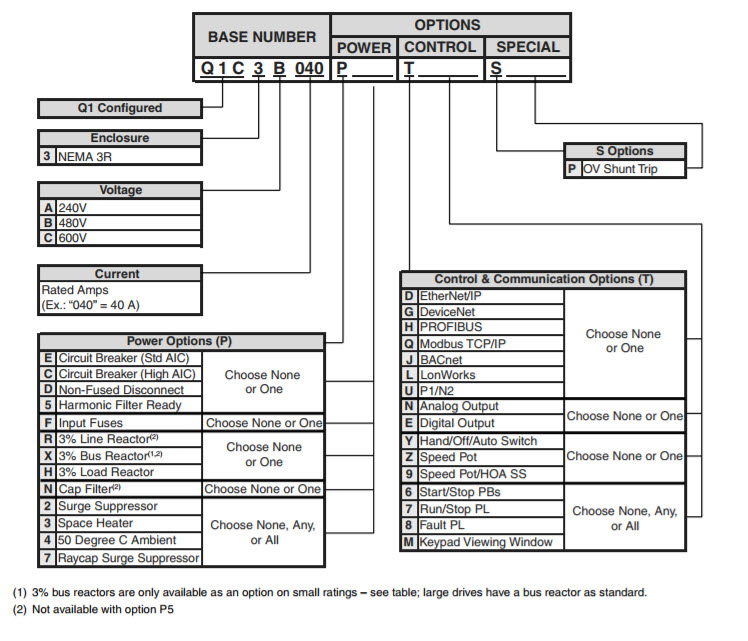

Model Key for 1-1000 HP, NEMA 3R Models:

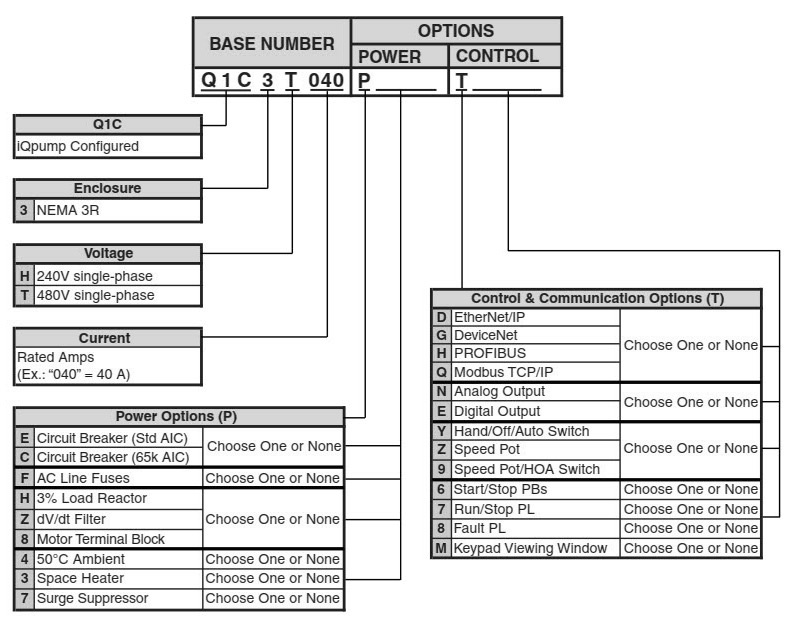

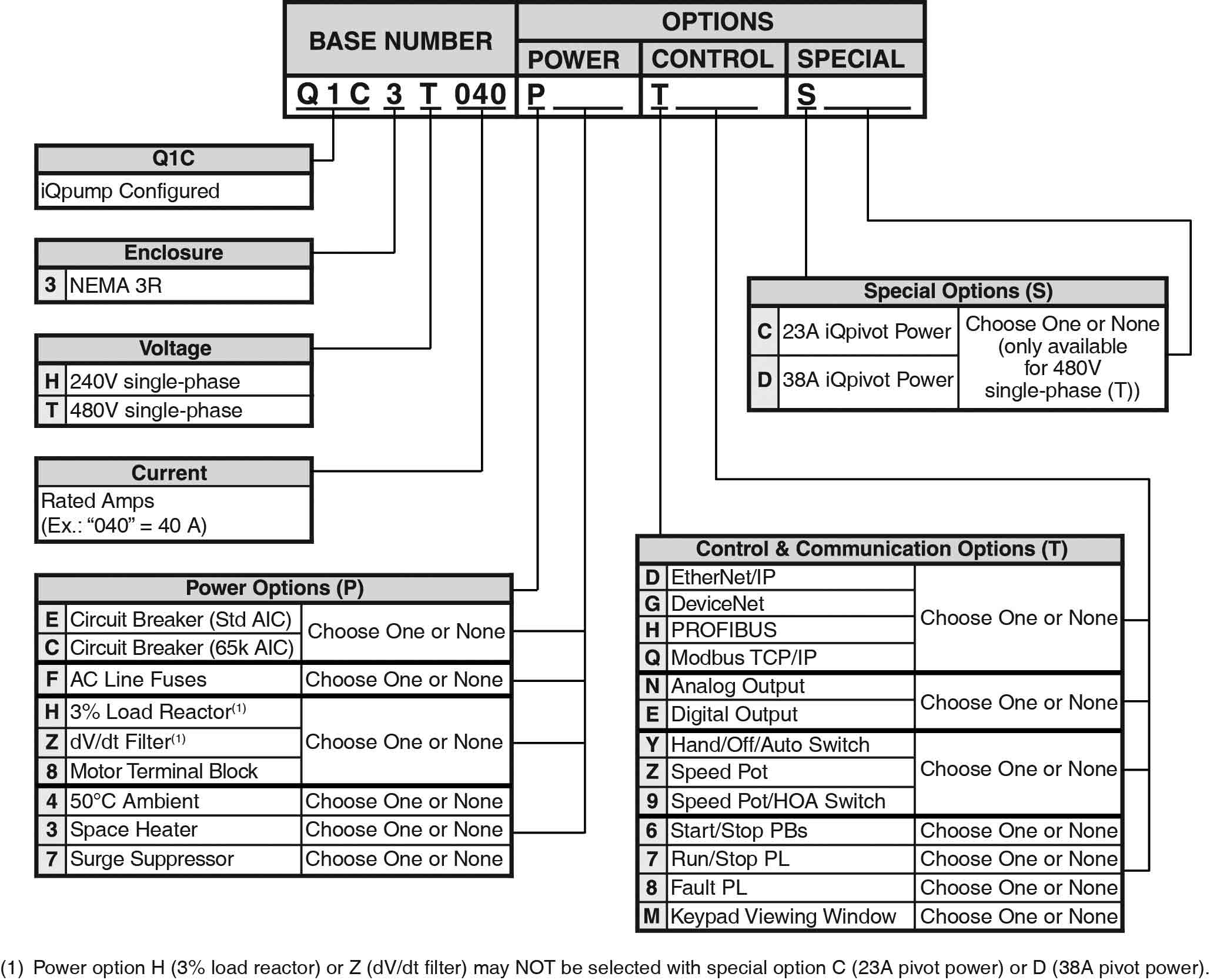

Model Key for NEMA 3R / Single Phase Models:

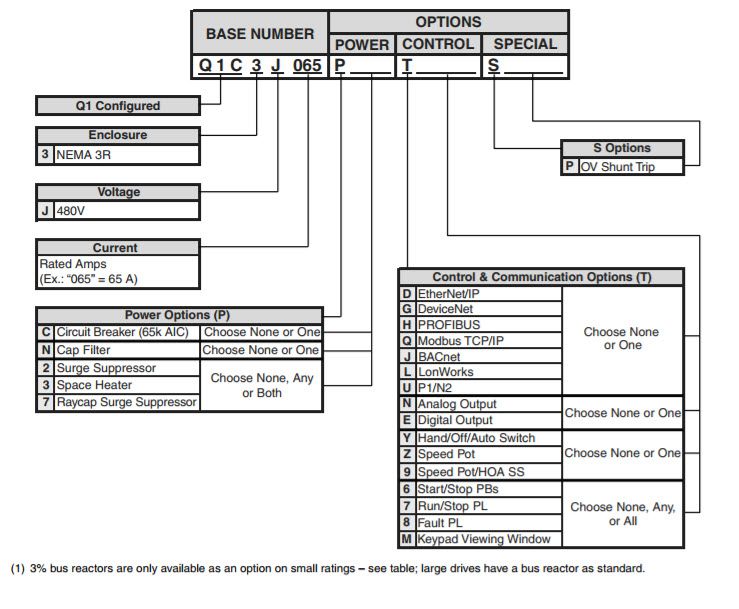

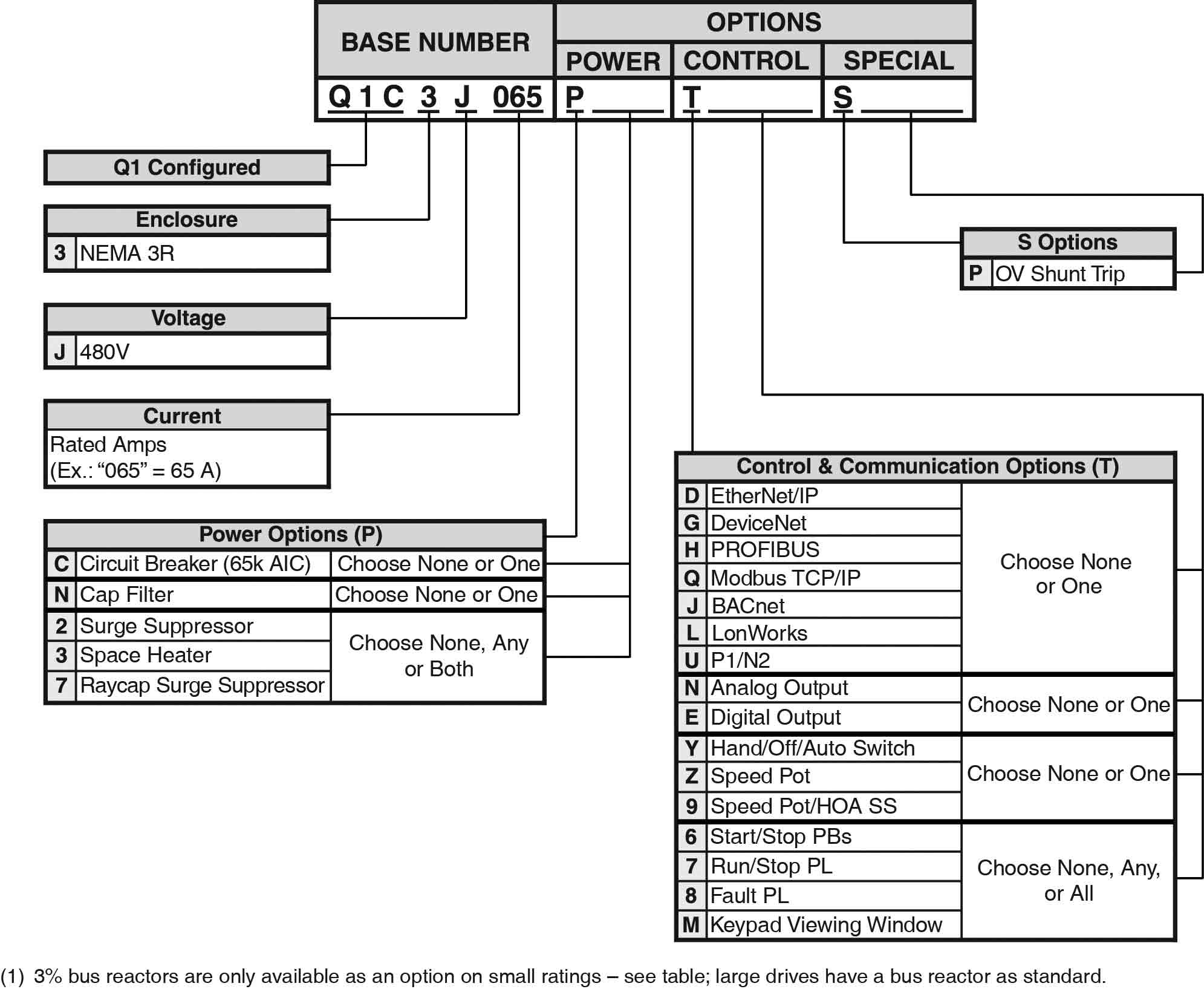

Model Key for 50-550 HP, NEMA 3R / 12-Pulse Models:
