Single-phase 100 V | Single-phase 200 V | Three-phase 200 V | Three-phase 400 V | Overload Characteristics
Single-phase 100 V
SERVOPACK Model SGDV- | R70F | R90F | 2R1F | 2R8F |
Applicable Servomotor Max. Capacity kW | 0.05 | 0.1 | 0.2 | 0.4 |
Continuous Output Current Arms | 0.66 | 0.91 | 2.1 | 2.8 |
Max. Output Current Arms | 2.1 | 2.9 | 6.5 | 9.3 |
Main Circuit (Single Phase) | 100 to 115 VAC+10% to −15% 50/60 Hz |
Control Circuit (Single Phase) | 100 to 115 VAC+10% to −15% 50/60 Hz |
Back to Top
Single-phase 200 V
SERVOPACK Model SGDV- | 120 |
Applicable Servomotor Max. Capacity kW | 1.5 |
Continuous Output Current Arms | 11.6 |
Max. Output Current Arms | 28 |
Main Circuit (Single Phase) | 220 to 230 VAC+10% to −15% 50/60 Hz |
Control Circuit (Single Phase) | 220 to 230 VAC+10% to −15% 50/60 Hz |
Back to Top
Three-phase 200 V
SERVOPACK Model SGDV- | R70A | R90A | 1R6A | 2R8A | 3R8A | 5R5A | 7R6A | 120A |
Applicable Servomotor Max. Capacity kW | 0.05 | 0.1 | 0.2 | 0.4 | 0.5 | 0.75 | 1.0 | 1.5 |
Continuous Output Current Arms | 0.66 | 0.91 | 1.6 | 2.8 | 3.8 | 5.5 | 7.6 | 11.6 |
Max. Output Current Arms | 2.1 | 2.9 | 6.5 | 9.3 | 11 | 16.9 | 17 | 28 |
Main Circuit | Three-phase 200 to 230 VAC+10% to −15% 50/60 Hz |
Control Circuit | Single-phase 200 to 230 VAC+10% to −15% 50/60 Hz |
SERVOPACK Model SGDV- | 180A | 200A | 330A | 470A | 550A | 590A | 780A |
Applicable Servomotor Max. Capacity kW | 2.0 | 3.0 | 5.0 | 6 | 7.5 | 11 | 15 |
Continuous Output Current Arms | 18.5 | 19.6 | 32.9 | 46.9 | 54.7 | 58.6 | 78 |
Max. Output Current Arms | 42 | 56 | 84 | 110 | 130 | 140 | 170 |
Main Circuit | Three-phase 200 to 230 VAC+10% to −15% 50/60 Hz |
Control Circuit | Single-phase 200 to 230 VAC+10% to −15% 50/60 Hz |
Back to Top
Three-phase 400 V
SERVOPACK Model SGDV- | 1R9D | 3R5D | 5R4D | 8R4D | 120D | 170D | 210D | 260D | 280D | 370D |
Applicable Servomotor Max. Capacity kW | 0.5 | 1.0 | 1.5 | 2.0 | 3.0 | 5.0 | 6 | 7.5 | 11 | 15 |
Continuous Output Current Arms | 1.9 | 3.5 | 5.4 | 8.4 | 11.9 | 16.5 | 20.8 | 25.4 | 28.1 | 37.2 |
Max. Output Current Arms | 5.5 | 8.5 | 14 | 20 | 28 | 42 | 55 | 65 | 70 | 85 |
Main Circuit | Three-phase 380 to 480 VAC+10% to −15% 50/60 Hz |
Control Circuit | 24 VDC ±15% |
Back to Top

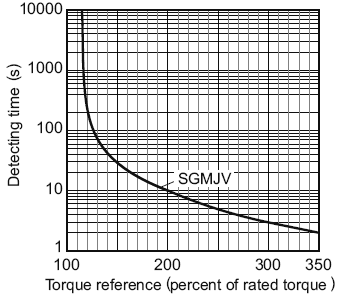

SERVOPACK Overload Characteristics
 |  |
|
|
Note: Overload characteristics shown above do not guarantee continuous duty of 100% or more output. Use a servomotor with effective torque within the continuous duty zone of Torque-Motor Speed Characteristics. |
